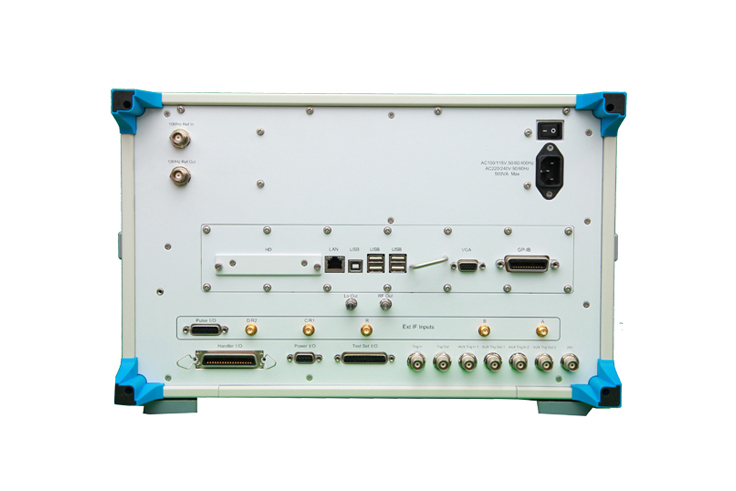

S3602 series vector network analyzer is a top level VNA with excellent specifications. Its frequency ranges from 10MHz to 67GHz. With Saluki frequency extension modules, the VNA can reach up to 325GHz. S3602 series has a wide dynamic range, low trace noise, friendly UI and flexible interfaces including USB, GPIB, LAN and VGA.

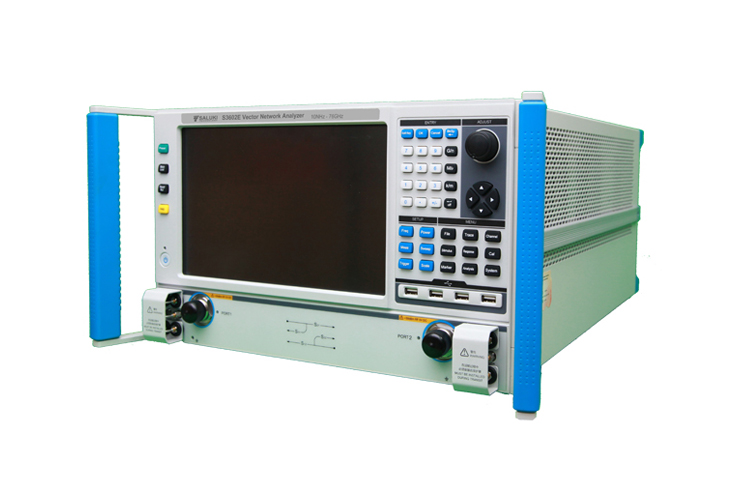

S3602 Series Vector Network Analyzer
Key Features
Frequency range from 10 MHz to 67 GHz
Extension modules can extend frequency range up to 325 GHz
Available in multiple display formats such as logarithmic amplitude, linear amplitude, SWR, Phase, Smith chart
Flexible and optional calibration types, Mechanic / Electronic calibration kit
64 measurement channels, 16 windows, 8 traces displayed on each window
Multi-window, multi-channel measurement, instantly execute intricate measurement plan
Record/run, one-click operation greatly simplifies the measurement setting steps and improves the efficiency
Available in functions as pulse S parameter measurement, time-domain measurement, mixer measurement, gain compression two-dimensional sweep measurement, millimeter-wave frequency extension, antenna & RCS measurement and receiving etc.
| Frequency Range | S3602A: 10 MHz to 13.5 GHz, |
| Frequency Resolution | 1 Hz |
| Frequency Accuracy | ±1×10-7 (23℃±3℃) |
| Max. Dynamic Range | • S3602A/B: 135dB @10GHz • S3602C/D: 133dB @10GHz • S3602E: 125dB @10GHz |
| Power Scan Range | • S3602A/B: 41dB @10GHz • S3602C/D: 36dB @10GHz • S3602E: 36dB @10GHz |
| Output Power | • S3602A/B: 14dBm @10GHz • S3602C/D: 10dBm @10GHz • S3602E: 9dBm @10GHz |
| Amplitude Trace Noise | 0.001dBrms @10GHz |
| Effective Directivity | • S3602A/B: > 53dB • S3602C/D: > 42dB • S3602E: > 42dB |
| Effective Source Match | |
| Effective Load Match | > 51dB |
| Reflection Tracking | • S3602A/B: ± 0.01dB • S3602C/D: ± 0.02dB • S3602E: ± 0.02dB |
| Transmission Tracking | • S3602A/B: ± 0.015dB • S3602C/D: ± 0.02dB • S3602E: ± 0.02dB |
| Number of Built-In Ports | 2 ports (standard) / 4 ports (optional) |
| IF Bandwidth | 1Hz – 5MHz |
| Impedance | 50 Ω |
| Interface | • S3602A/B: 3.5mm male • S3602C/D: 2.4mm male • S3602E: 1.85mm male |
| Dimension | • S3602A/B: 463 (W) x 279.5 (H) x 640 (D) mm • S3602C/D: 463 (W) x 279.5 (H) x 690 (D) mm • S3602E: 463 (W) x 281 (H) x 690 (D) mm |
| Weight | • S3602A/B: 42kg • S3602C/D: 47kg • S3602E: 50kg |
(Note: see more detail information in the Source – Datasheet.) |
Main Machine
| Module No. | Item | Description |
| S3602A | Vector Network Analyzer | 10 MHz to 13.5 GHz |
| S3602B | Vector Network Analyzer | 10 MHz to 26.5 GHz |
| S3602C | Vector Network Analyzer | 10 MHz to 43.5 GHz |
| S3602D | Vector Network Analyzer | 10 MHz to 50 GHz |
| S3602E | Vector Network Analyzer | 10 MHz to 67 GHz |
Hardware Options
| Module No. | Item | Description |
| 201 | 2-Port Programmable Step Attenuator | Set two 70dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path |
| 400 | 4-Port Measurement | Two-source stimulus four-port VNA configuration |
| 401 | 4-Port Programmable Step Attenuator | Set four 70dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed) |
| 402 | Active Inter-modulation Measurement | For inter-modulation signal measurement of amplifier (Option 400 is needed) |
| 002 | Scalar Noise Figure Measurement | Built-in 10MHz-13.5GHz high-sensitivity noise receiver, using S-parameter calibration and noise receiver calibration technology, only need to connect the DUT once to complete the measurement of S-parameter and noise figure at the same time. |
| 003 | Vector Noise Figure Measurement | The built-in 10MHz-13.5GHz high-sensitivity noise receiver requires an external electronic calibration kit. This option contains 002 option function. |
| 008 | Pulse Measurement | For pulse S-parameter measurement |
| 480 | Four-port Spread Spectrum System Cable | The four-port vector network analyzer must be connected to the cable when directly building a spread spectrum system. |
| 3648 | Multi-port Network Parameter Expansion Device (16 ports) | Extend to 16-port network parameter measurement (10MHz-26.5GHz) |
Software Options
| Module No. | Item | Description |
| S06 | MiliMeter extension port power control | Unique function, suitable for spread spectrum module with adjustable power function, such as SAV3643P S parameter spread spectrum module |
| S07 | AFR Automatic Fixture Removal Option | Used for automatic testing and removal of single-ended and balanced device measuring fixtures |
| S10 | Time Domain Measurement | For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables |
| S80 | Frequency Offset Measurement | For frequency offset measurement. millimeter-wave frequency extension main unit needs this option |
| S82 | Mixer Scalar Measurement | For the scalar parameter measurement of mixers (Option 400 is needed) |
| S83 | Mixer Vector Measurement | For the vector parameter measurement of mixers (Option 400 is needed) |
| S84 | Embedded Local Oscillator Frequency Converter Measurement | For the measurement of embedded LO frequency converters (Option 400, S82 or S83 are needed) |
| S86 | Gain Compression Two Dimensional Sweep Measurement | For the gain compression two-dimension sweep test of amplifier |
| S88 | Phase Scan Option | Used for phase scan measurement (need option 400) |
Accessories Options
| Module No. | Item | Description |
| SCKCL26-3.5 | 3.5mm Calibrator Kit | For calibration of the analyzer |
| SCKCL40-2.4 | 2.4mm Calibration Kit | For calibration of the analyzer |
| SCKCL67-1.85 | 1.85mm Calibration Kit | For calibration of the analyzer |
| FB0HA0HB025.0 | 3.5mm Test Cable | For measurement of the analyzer |
| FB0HA0HC025.0 | 3.5mm Test Cable | For measurement of the analyzer |
| FE0BN0BM025.0 | 2.4mm Test Cable | For measurement of the analyzer |
| FE0BN0BL025.0 | 2.4mm Test Cable | For measurement of the analyzer |
| FF0CN0CM025.0 | 1.85mm Test Cable | For measurement of the analyzer |
| FF0CN0CL025.0 | 1.85mm Test Cable | For measurement of the analyzer |
| SAV20403 | Electronic Calibrator Kit | For calibration of the analyzer (10MHz-26.5GHz, 2 ports) |
| SAV20404 | Electronic Calibrator Kit | For calibration of the analyzer (10MHz-50GHz 2 ports) |
| SAV20405 | Electronic Calibrator Kit | For calibration of the analyzer (10MHz-20GHz, 4 ports) |
| SAV20409 | Electronic Calibrator Kit | For calibration of the analyzer (10MHz-67GHz, 2 ports) |
| S87232 | USB Power Probe | For 402, S82, S86 Options in the process of power calibration（50MHZ-26.5GHZ） |
| S87233 | USB Power Probe | For 402, S82, S86 Options in the process of power calibration (50MHz-40GHz) |
| Cables | Extension Module Cable Sets | / |
| Top Rack | / | Easy to build the system and use on the cabinet |
