S3601 series vector network analyzer is a powerful and efficient VNA which is suitable for industries like wireless communication, CATV, automotive and education. S3601 series is capable to do amplitude, phase, group delay S parameter measurement of filters, amplifiers, antennas, cables, connectors etc. S3601 series uses Windows system and provide multi display format, multi calibration types, multi window display and flexible interfaces.

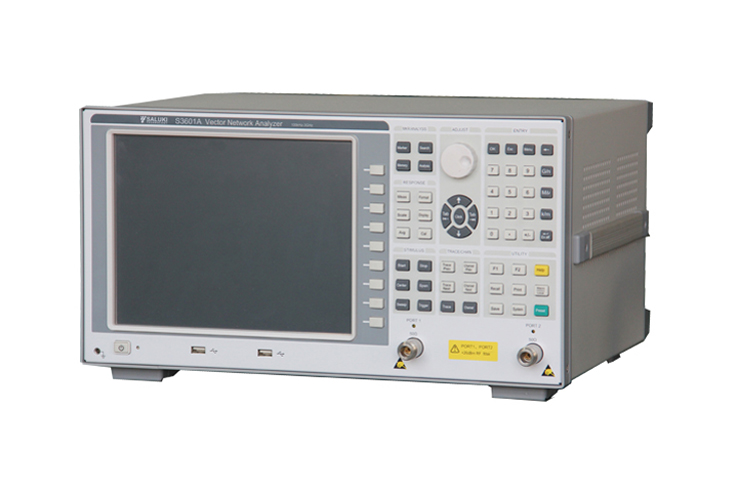

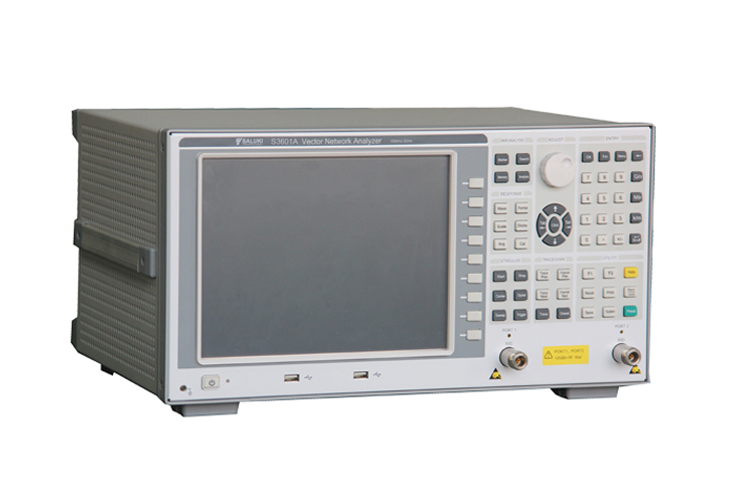

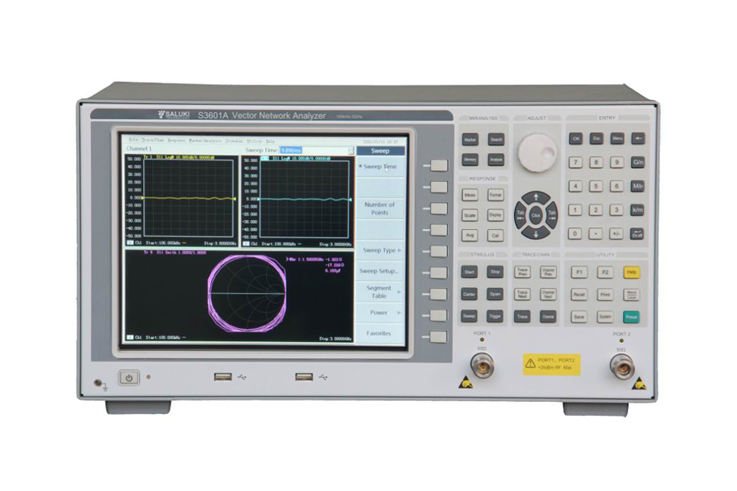

S3601 Series Vector Network Analyzer
Key Features
Frequency range from 100kHz to 3GHz / 8.5GHz
125dB wide dynamic range, accurate measurement on high rejection ratio devices
Provide 4-port option which can achieve all 16 S parameters test
Standard interfaces including USB, LAN, GPIB, VGA
Low noise level, good measurement performance
Multi-window, multi-channel measurement display
75Ω test port impedance option of S3601A for cable TV components measurement
Multiple calibration methods including frequency response, single port, response isolation, enhanced response and full dual-port, rapid SOLT calibration and electrical calibration
| Frequency Range | S3601A: 100 kHz to 3 GHz, S3601B: 100 kHz to 8.5 GHz |
| Frequency Resolution | 1 Hz |
| Frequency Accuracy | ±5×10-6 (23°C ± 3°C) |
| Output Power | S3601A: -45dBm to 10dBm, S3601B: -55dBm to 10dBm |
| Max. Dynamic Range | S3601A: (10Hz) / (3kHz) • 100kHz – 1MHz: 90dB / 60dB • 1MHz – 10MHz: 110 dB / 80dB • 10MHz – 3GHz: 125dB / 95dB S3601B: (10Hz) / (3kHz) • 100kHz – 20MHz: 110dB / 80dB • 20MHz – 3GHz: 125dB / 95dB • 3GHz – 6GHz: 123dB / 93dB • 6GHz – 8.5GHz: 118dB / 88dB
|
| Reflection Track | S3601A: • 100kHz – 10MHz: ±0.030dB • 10MHz – 3GHz: ±0.020dB S3601B: • 100kHz – 3GHz: ±0.030dB • 3GHz – 6GHz: ±0.040dB • 6GHz – 8.5GHz: ±0.050dB |
| Transmission Track | S3601A: • 100kHz – 10MHz: ±0.030dB • 10MHz – 3GHz: ±0.020dB S3601B: • 100kHz – 3GHz: ±0.030dB • 3GHz – 6GHz: ±0.040dB • 6GHz – 8.5GHz: ±0.050dB |
| Effective Directivity | S3601A: • 100kHz – 10MHz: 49dB • 10MHz – 3GHz: 46dB • 100kHz – 10MHz: 49dB (option H01) • 10MHz – 3GHz: 46dB (option H01) S3601B: • 100kHz – 3GHz: 46dB • 3GHz – 6GHz: 40dB • 6GHz – 8.5GHz: 38dB |
| Effective Source Match | S3601A: • 100kHz – 10MHz: 44dB • 10MHz – 3GHz: 40dB • 100kHz – 10MHz: 43dB (option H01) • 10MHz – 3GHz: 21dB (option H01) S3601B: • 100kHz – 3GHz: 36dB • 3GHz – 6GHz: 35dB • 6GHz – 8.5GHz: 33dB |
| Effective Load Match | S3601A: • 100kHz – 10MHz: 49dB • 10MHz – 3GHz: 46dB • 100kHz – 10MHz: 48dB (option H01) • 10MHz – 3GHz: 41dB (option H01) S3601B: • 100kHz – 3GHz: 44dB • 3GHz – 6GHz: 40dB • 6GHz – 8.5GHz: 36dB |
| IF Bandwidth | 1MHz – 5MHz |
| Number of Built-In Ports | 2 |
| Measurement Point | 1 – 16001 |
| Number of Measurement Receiver | 4 |
| Reference Level Amplitude Setting | • Range: ± 500dB • Resolution: 0.001dB |
| Reference Phase Setting | • Range: ± 500° • Resolution: 0.01° |
| Time-base Reference Output | • Output frequency: 10MHz • Output level: +10dBm ± 4dB |
| Measurement Fields | Frequency domain and Time domain |
| Display Format | Logarithmic amplitude, linear range, standing wave, phase, group delay, smith chart, polar diagram |
| Interface | • N (F), 50Ω system impedance • N (F), 75Ω system impedance (option 01) |
| Power Supply | 50 Hz 220 V AC / 60 Hz 110 V AC |
| Power Consumption | 150 W |
| Display | 10.4-inch high brightness LCD |
| Dimension | 435 (W) × 233 (H) × 348 (D) mm |
| Weight | 16 kg |
Main Machine
| Module No. | Item | Description |
| S3601A | Vector Network Analyzer | 100 kHz to 3 GHz |
| S3601B | Vector Network Analyzer | 100 kHz to 8.5 GHz |
Options of S3601A Vector Network Analyzer
| Module No. | Item | Description |
| S3601A-01 | 75Ω port impedance system | / |
| S3601A-02 | N-type testing cable | (GORE-OSZKUZKU0240) Male - Male, 60cm |
| S3601A-03 | N-type testing cable | (GORE-OSZKUZKU0240) Female - Male, 60cm |
| S3601A-05 | 20205 Type-N calibration kit | DC - 3GHz |
| S3601A-06 | 20204 Type-N 75Ω calibration kit | / |
| S3601A-07 | Economical stable testing cable | Saluki-N/J.SMA/J.197C-800, N-type to 3.5mm connector, dual male, 80cm |
| S3601A-08 | Economical stable testing cable | Saluki-N/J.N/K.197C-800, N-type connector, female-male, 80cm |
| S3601A-09 | Economical stable testing cable | Saluki-N/J.N/J.197C-800, N-type connector, dual male, 80cm |
| S3601A-10 | 75Ω testing cable | 24-0800-51M1-51M1 |
| S3601A-11 | 20402 Electronic calibration kit | 300kHz-18GHz, N Type (female to male), 2 port |
| S3601A-12 | 20403 Electronic calibration kit | 10MHz-26.5GHz, 3.5mm (female to male), 2 port |
| S3601A-13 | 20405 Electronic calibration kit | 10MHz-20GHz, 3.5mm (female), 4 port |
| S3601A-16 | Aluminum carrying case | For safety transportation |
| S3601A-17 | Front panel jumper | Supports 4-port extension and receiver through test |
| S3601A-18 | 2813A 4-port test equipemt | Dual male, need option S3601A-17 |
| S3601A-19 | Cabinet | Easy to build system |
Options of S3601B Vector Network Analyzer
| Module No. | Item | Description |
| S3601B-02 | N-type testing cable | (GORE-OSZKUZKU0240) Male - Male, 60cm |
| S3601B-03 | N-type testing cable | (GORE-OSZKUZKU0240) Female - Male, 60cm |
| S3601B-07 | Economical stable phase testing cable | Saluki-N/J.SMA/J.197C-800, N-type to 3.5mm connector, dual male, 80cm |
| S3601B-08 | Economical stable phase testing cable | Saluki-N/J.N/K.197C-800, N-type connector, female-male, 80cm |
| S3601B-09 | Economical stable phase testing cable | Saluki-N/J.N/J.197C-800, N-type connector, dual male, 80cm |
| S3601B-11 | 20402 Electronic calibration kit | 300kHz-18GHz, N Type (female to male), 2 port |
| S3601B-12 | 20403 Electronic calibration kit | 10MHz-26.5GHz, 3.5mm (female to male), 2 port |
| S3601B-13 | 20405 Electronic calibration kit | 10MHz-20GHz, 3.5mm (female), 4 port |
| S3601B-16 | Aluminum carrying case | For safety transportation |
| S3601B-18 | 2813A 4-port test equipemt | Need option S3601B-29 |
| S3601B-19 | Cabinet | Easy to build system |
| S3601B-21 | 20201 N-type calibration kit | DC - 9GHz |
| S3601B-22 | 20202 3.5mm calibration kit | DC - 9GHz |
| S3601B-23 | 32111 waveguide calibration kit | 1.72GHz - 2.61GHz |
| S3601B-24 | 32112 waveguide calibration kit | 2.6GHz - 3.95GHz |
| S3601B-25 | 32113 waveguide calibration kit | 3.94GHz - 6.0GHz |
| S3601B-26 | 32114 waveguide calibration kit | 4.64GHz - 7.05GHz |
| S3601B-27 | 32115 waveguide calibration kit | 5.88GHz - 8.17GHz |
| S3601B-28 | 32116 waveguide calibration kit | 7.0GHz - 10.0GHz |
| S3601B-29 | Front panel jumper | Supports 4-port extension and receiver through test |
