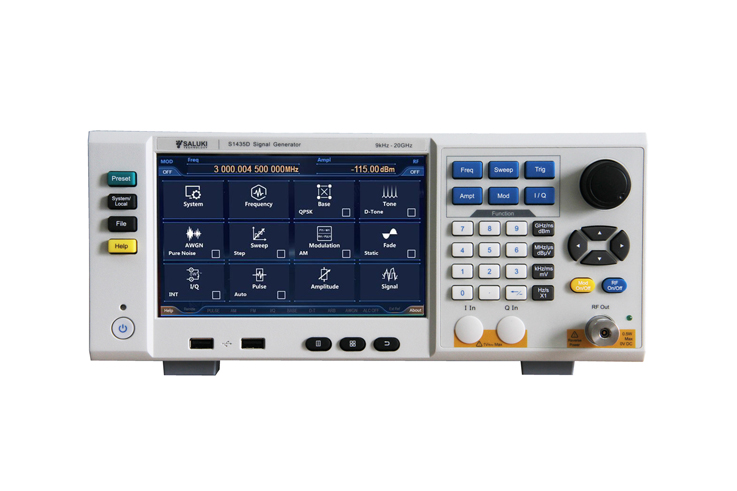

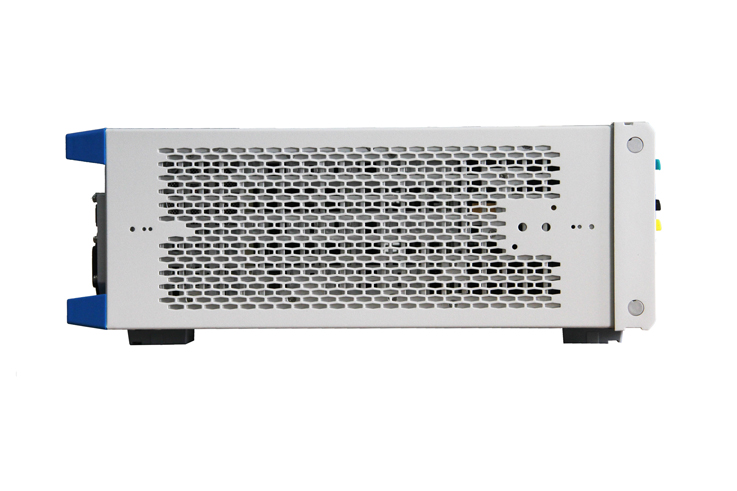

S1435 Series Signal Generator

S1435 series signal generator achieves balance in terms of performance, economy and volumetric weight. It responds fast and switches to another frequency in only 1ms, which shortens the test time and improves test efficiency, meeting the needs of massive data testing. In addition, it also has excellent analog modulation and pulse modulation functions. By adopting advanced frequency synthesis and RF channel signal processing technologies, it can achieve high performance while reducing the cost.

Besides, S1435 series signal generator is equipped with a 7-inch high-sensitivity LED touch screen, and supports operation by touch screen, panel buttons, rotary knobs, external mouse and keyboard, etc., which fully upgrades the users’ operation experience. It adopts portable 3U chassis structure and is featured by small size and light weight, and thus is easy to carry. The S1435 series signal generator can meet both the test requirements for high performance in the R&D phase and the test requirements for high efficiency in the production phase.

Key Features

Wide frequency range from 9 kHz to 40 GHz

High output power up to 20dBm@20GHz

Power dynamic range greater than 150dB

Excellent phase noise of 1GHz@10kHz: -136dBc/Hz

High performance pulse modulation

Built-in multi-function function generator

High-sensitivity LED touch screen, small size and light weight

Frequency Range

S1435A: 9 kHz to 3 GHz,
S1435B: 9 kHz to 6 GHz,
S1435C: 9 kHz to 12 GHz,
S1435D: 9 kHz to 20 GHz,
S1435F: 9 kHz to 40 GHz

Frequency Resolution

0.001 Hz

Frequency Switching Time

≤ 1ms (typical)

Time Base Aging Rate (typ.)

Standard:

±5×10-7/year (after continuous switch-on for 30 days)

High stability time base option H10:

•  ±5×10-8/year (after continuous switch-on for 30 days),

•  ±5×10-10/day(after continuous switch-on for 30 days)

Reference Output

•  Frequency: 10MHz

•  Power: >+4dBm, to 50Ω load

Reference Input

•  Frequency: 1MHz – 50MHz, step 1Hz

•  Power: 0dBm to +7dBm, impedance 50Ω

Scanning Mode

Step scan, List scan

Scan Dwell Time

100μs – 100s

Minimum Output Power

•  Standard: -15dBm (can be set -20dBm)

•  Option H01: -110dBm (can be set -135dBm)

Maximum Output Power (Standard)

S1435A/B:

•  9kHz ≤ f ≤ 3GHz: 18dBm

•  3GHz < f≤ 5GHz: 16dBm

•  5GHz < f≤ 6GHz: 15dBm

S1435C/D:

•  9kHz ≤ f ≤ 3GHz: 16dBm

•  3GHz < f≤ 20GHz: 15dBm

S1435F:

•  9kHz ≤ f ≤ 3GHz: 14dBm

•  3GHz < f≤ 17GHz: 13dBm

•  17GHz < f≤ 40GHz: 11dBm

Maximum Output Power (Option H08)

S1435A/B:

•  9kHz ≤ f ≤ 3GHz: 22dBm

•  3GHz < f≤ 5GHz: 20dBm

•  5GHz < f≤ 6GHz: 18dBm

S1435C/D:

•  9kHz ≤ f ≤ 3GHz: 21dBm

•  3GHz < f≤ 20GHz: 20dBm

S1435F:

•  9kHz ≤ f ≤ 3GHz: 20dBm

•  3GHz < f≤ 17GHz: 17dBm

•  17GHz < f≤ 40GHz: 15dBm

Power Resolution

0.01 dB

VSWR (typ.)

•  9kHz ≤ f ≤ 3GHz: <1.7

•  3GHz < f ≤ 13GHz: <1.6

•  13GHz < f ≤ 20GHz: <1.8

•  20GHz < f ≤ 40GHz: <1.6

Maximum Rerverse Power

0.5W (0V DC) (rated value)

Haimonic Wave (at +10dBm)

•  9kHz ≤ f ≤ 10MHz: < -23dBc

•  10MHz < f ≤ 2GHz: < -30dBc

•  2GHz < f ≤ 6GHz: < -30dBc  (S1435B)

•  2GHz < f ≤ 20GHz: < -55dBc

•  20GHz < f ≤ 40GHz: < -50dBc (typ.)

Sub-harmonic Wave (at +10dBm)

•  9kHz ≤ f ≤ 6GHz: None

•  6GHz < f ≤ 12GHz: < -60dBc

•  12GHz < f ≤ 24GHz: < -55dBc

•  24GHz < f ≤ 40GHz: < -50dBc

Non-Harmonic Wave (Standard)

•  9kHz ≤ f ≤ 250MHz: < -54dBc

•  250MHz < f ≤ 3GHz: < -62dBc

•  3GHz < f ≤ 6GHz: < -56dBc

•  6GHz < f ≤ 12GHz: < -50dBc

•  12GHz < f ≤ 24GHz: < -44dBc

•  24GHz < f ≤ 40GHz: < -38dBc

(at 0dBm, 10kHz Frequency Offset)

Non-Harmonic Wave (Low Phase Noise Option H06)

•  9kHz ≤ f ≤ 250MHz: < -60dBc

•  250MHz < f ≤ 3GHz: < -77dBc

•  3GHz < f ≤ 6GHz: < -71dBc

•  6GHz < f ≤ 12GHz: < -65dBc

•  12GHz < f ≤ 24GHz: < -59dBc

•  24GHz < f ≤ 40GHz: < -53dBc

(at 0dBm, 10kHz Frequency Offset)

SSB Phase Noise (Carrier 1GHz, at +10dBm)

Standard:

•  ≤-83 dBc/Hz @ 100Hz offset

•  ≤-115 dBc/Hz @ 10kHz offset

Low Phase Noise Option H06:

•  ≤-83 dBc/Hz @ 100Hz offset

•  ≤-113 dBc/Hz @ 1kHz offset

•  ≤-132 dBc/Hz @ 10kHz offset

•  ≤-132 dBc / Hz @ 100kHz offset

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Frequency Modulation (Option H02)

•  Maximum frequency offset: N × 16MHz (N is the number of fundamental harmonic wave)

•  Accuracy (1kHz modulation rate, frequency offset: N × 500kHz): ± (2% × set frequency offset + 20Hz)

•  Modulation rate (3dB bandwidth, frequency offset: N × 500kHz): DC – 7MHz

•  Distortion (1kHz rate, frequency offset: N × 500kHz): <0.4%

Phase Modulation (Option H02)

•  Maximum phase offset: N × 16rad (N is the number of fundamental harmonic wave)

•  Accuracy (1kHz modulation rate, frequency offset: N × 500kHz): ± (2% × set phase offset + 0.01rad)

•  Modulation rate (3dB bandwidth, phase offset: N × 8rad): DC – 1MHz

•  Distortion (1kHz modulation rate, phase offset: N × 8rad): <0.4%

Amplitude Modulation (Option H02)

•  Maximum depth: >90%

•  Modulation rate: (1kHz modulation rate, 30% modulation depth): ± (4% × set depth +1%)

•  Modulation rate (bandwidth: 3dB; modulation depth: 30%; frequency test points: 1GHz, 5GHz, 20GHz, 40GHz): DC – 100kHz

•  Distortion: (1kHz modulation rate, linear mode, total harmonic distortion, 30% modulation depth): <2%

Pulse Modulation (Option H03)

•  Switching ratio: >80dB

•  Rise and fall time: <10ns

•  Minimum pulse of internal fixed amplitude: 1μs

•  Minimum pulse of non-fixed amplitude: 100ns



Narrow Pulse Modulation (Option H04)

•  Switching ratio: >80dB

•  Rise and fall time: <10ns

•  Minimum pulse of internal fixed amplitude: 1μs

•  Minimum pulse of non-fixed amplitude: 20ns

Internal Analog Modulation Signal Generator (Option H02)

Providing three independent signals for frequency/phase modulation, amplitude modulation and low frequency output signals.

•  Waveform:   sine wave, square wave, triangle wave, sawtooth wave

•  Frequency range: sine wave 0.1Hz – 10MHz, square   wave, triangle wave, sawtooth wave 0.1Hz – 1MHz

•  Frequency resolution: 0.1Hz

•  Low  frequency output: amplitude 0-5V peak (rated value), to 50Ω load

Internal Pulse Generator (Option H03)

•  Pulse width: 20ns – (42s-10ns) (rated value)

•  Pulse period: 40ns – 42s (rated value)

•  Resolution: 10ns

Multi-Function Function Generator (Option H05)

The Multi-function generator consists of 7 waveform generators. The generator can be set separately or five generators can be set simultaneously by using the AM, FM/ΦM and the composite modulation features in the low-frequency output.

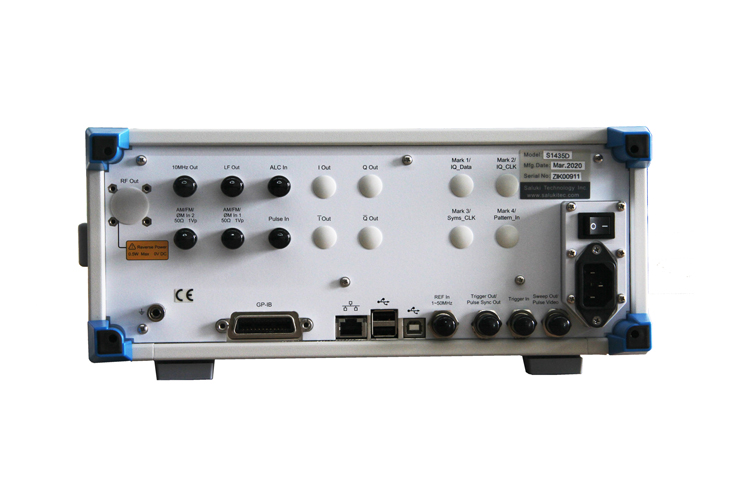

RF Output Port

•  S1435A/B/C: N type (female), impedance 50Ω

•  S1435D: 3.5mm (male), N type (female) (option H91), impedance 50Ω

•  S1435F: 2.4mm (male), impedance 50Ω

Power Consumption

< 300W

Dimension (max.)

•  330 (W) × 147 (H) × 397 (D) mm (excluding the handle)

•  420 (W) × 147 (H) × 445 (D) mm (including the handle)

Weight

< 12kg (the weight varies with the model and option configuration)

Power Supply

100 – 120VAC, 50 – 60Hz; or 200 – 240VAC, 50 – 60Hz (self-adaptive)

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
S1435A Signal Generator 9 kHz to 3 GHz
S1435B Signal Generator 9 kHz to 6 GHz
S1435C Signal Generator 9 kHz to 12 GHz
S1435D Signal Generator 9 kHz to 20 GHz
S1435F Signal Generator 9 kHz to 40 GHz

Options

Module No. Item Description
S1435-H01 115dB programmable step attenuator Expand the output power dynamic range.
S1435-H02 Analog modulation Increase analog modulation functions, including AM, FM, ΦM, and low frequency output.
S1435-H03 Pulse modulation Increase the pulse modulation function with a minimum pulse width of 100ns.
S1435-H04 Narrow pulse modulation Increase the pulse modulation function with a minimum pulse width of 20ns.
S1435-H05 Multi-function function generator Add a richer analog modulation signal format. (Note: The H05 option is available after the H02 analog modulation option is selected).
S1435-H06 Low phase noise Optimize phase noise, 10GHz@10kHz: -113dBc/Hz.
S1435-H08 High power output Increase the maximum output power.
S1435-H10 High stability time base option Internal time base aging rate.
S1435-H50 Calibration certificate Instrument calibration.
S1435-H91 Type-N connector for RF output Type-N connector for RF output, applicable to S1435D.
S1435-H92 RF output moved to the rear panel RF output on rear panel
S1435-H93 Portable handle 3U handle
S1435-H94 Rack mount kit Mounting kit for the upper cabinet
S1435-H95 Aluminum alloy transport case High-strength lightweight aluminum alloy transport case with handle and universal roller for easy transportation.
S1435-H98 English version /
