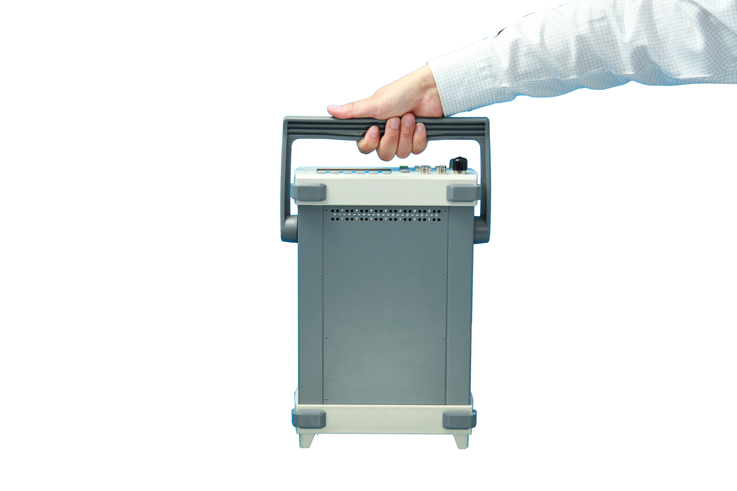

El generador de señales de RF S1131 proporciona a los ingenieros una solución “más pequeña, más ligera y más fácil” para aplicaciones de generación de señales de 3GHz. Si bien es un instrumento de nivel de entrada, el S1131 proporciona las funciones de uso más común que un ingeniero necesita, como generación de señal CW, modulación AM / FM / PM / pulso, modulación digital (ASK, FSK, PSK), conversión ascendente, salida LF, etc. El S1131 también proporciona interfaces flexibles y admite SCPI para un fácil control remoto. El S1131 es perfecto para la educación, la fabricación y el mantenimiento de componentes de RF.

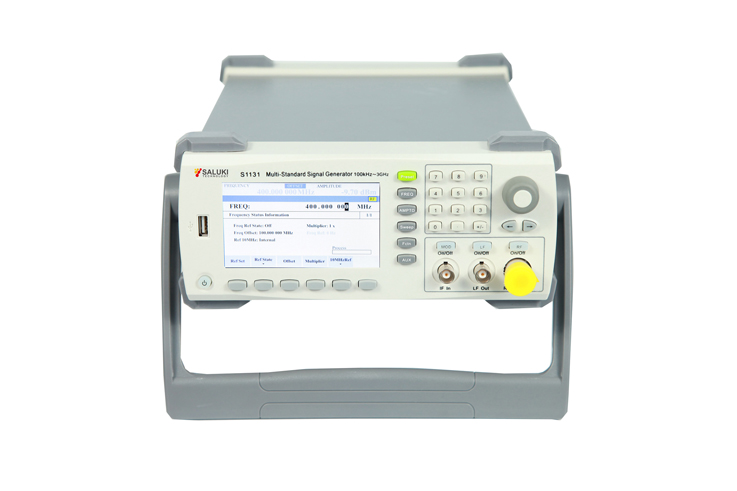

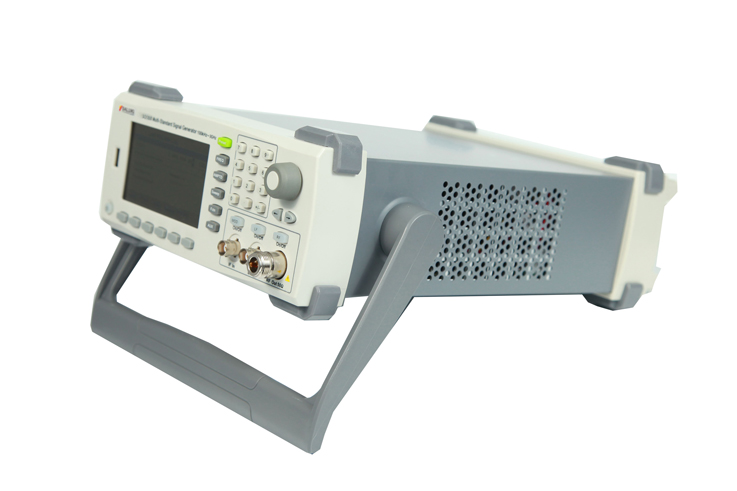

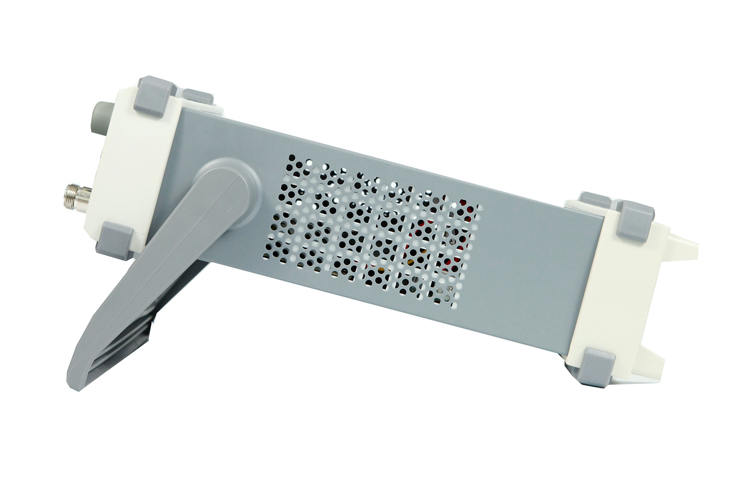

S1131 RF Generador de señal
Características claves
Rango de frecuencia de 9 kHz a 3 GHz
Typical output power from -120dBm to +10dBm
Multi sweep mode, Step sweep, list sweep, frequency sweep and power sweep
Standard low frequency output function, sine, square, triangle and saw tooth wave forms are supported
Standard analog modulation functions, AM, FM, PM and Pulse modulation, minimum pulse width is 100ns
Standard digital modulation functions, ASK, 2/4/8FSK, 2/4/8PSK supported
Support linear frequency modulation, can simulate radar signals
Standard IF input output, USB/LAN remote control interface, SCPI supported
| Frequency Range | 9 kHz to 3 GHz |
| Frequency Resolution | 0.23 dB |
| Internal Reference Frequency | 10 MHz |
| Temperature Stability | ±0.5ppm (option: ±5ppb) |
| Internal Reference Output | 10 MHz, +2 dBm (typ.) |
| Sweep Mode | Step sweep, List sweep |
| Trigger Mode | Auto, External |
| Output Power Range | -120 dBm to 10 dBm |
| Output Power Resolution | 0.01 dB |
| Output Power Accuracy | |
| VSWR | < 1.8 |
| SSB Phase Noise | Carrier Frequency Offset @f=300MHz: • ≤-105 dBc / Hz @ 10kHz offset • ≤-115 dBc / Hz @ 100kHz offset Carrier Frequency Offset @f=1GHz: • ≤-93 dBc / Hz @ 10kHz offset • ≤-105 dBc / Hz @ 100kHz offset |
| Harmonic | < -30 dBc (typ.) |
| Non-Harmonic | < -50 dBc (typ.) |
| Analog Modulation Functions | AM, FM, PM, Pulse |
| Internal Modulation Signal Waveform | • Sine wave: 0.1Hz – 500kHz • Square: 0.1Hz – 20kHz • Triangle/ Sawtooth: 0.1Hz – 100kHz |
| RF Output Interface | Type-N, 50 Ω |

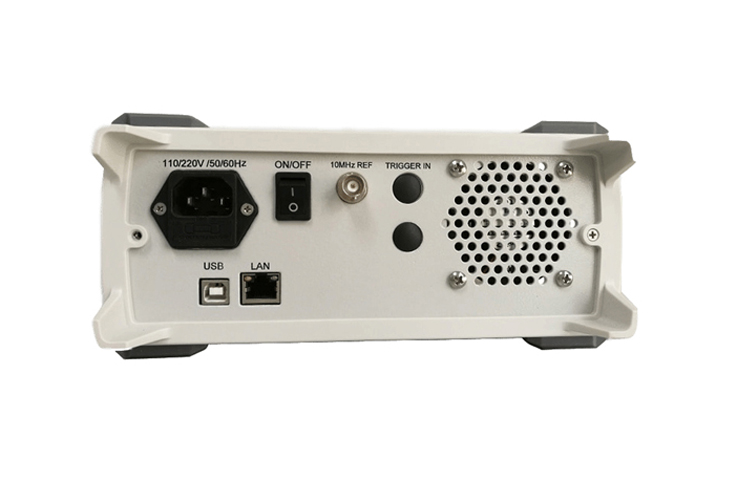

| Telecommunication Interface | USB, LAN, RS232 |
| Power Supply | |
| Dimension | 340 (W) × 110 (H) ×230 (D) mm |
| Weight | < 5kg |
(Note: see more detail information in the ‘Resource’ – ‘Datasheet’) |
Main Machine
| Module No. | Item | Description |
| S1131 | RF Signal Generator | 9 kHz to 3 GHz |
Options
| Module No. | Item | Description |
| S1131-01 | Internal Baseband Data Generation Option | / |
| S1131-02 | RF Upconversion Device | / |
| S1131-03 | Analog External Audio Modulation | / |
| S1131-04 | High Stability Time Base Option | / |
| S1131-05 | Power Meter Control Kit | / |
| S1131-06 | Directional Antenna | Frequency range 600MHz - 8GHz |
| S1131-07 | Omnidirectional Antenna | Frequency range 300MHz - 7.5GHz |
