S1132 series RF signal generator provides a wide range of product choices for different functional requirements and application scenarios, suitable for teaching, research, product development, production and maintenance. Each type of product has outstanding features in its function to characterize the focus of its testing field. S1132 series features a variety of key analog modulation functions, standard digital modulation functions and customizable dedicated modulation methods. Rich logic hardware interface and widescreen LCD display make it easy to control various operations.

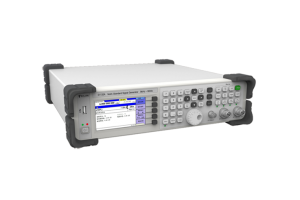

S1132 Multi-Standard Signal Generator
Key Features
Frequency range from 9 kHz to 6 GHz
Typical output power from -120dBm to +10dBm
Multiple digital modulation formats (ASK/PSK/FSK), built-in IQ modulator (B type)
AM/FM/ФM analog modulation functions, modulation rate up to 1MHz
Support pulse modulation, minimum pulse width 200ns
Support linear frequency modulation which can simulate radar signals
Customizable dedicated communication modulation (SSB/DSB/CW)
As frequency upper conversion, support external input IF signals
Standard IF input output, USB/LAN remote control interface, SCPI supported
| Frequency Range | S1132A/B: 9 kHz to 6 GHz |
| Frequency Resolution | 0.23 Hz |
| Internal Reference Frequency | 10 MHz |
| Temperature Stability | ±0.5ppm (option: ±5ppb) |
| Internal Reference Output | 10 MHz, +2 dBm (typ.) |
| Harmonic | ≤ -40dBc (typ.) |
| Non-harmonic | ≤ -65dBc (typ.) |
| SSB Phase Noise | Carrier frequency offset @f=1GHz: -100 dBc / Hz @ 10kHz offset |
| Output Power Range | • 9kHz – 50kHz: -120dBm to 0dBm • 50kHz – 6GHz: -120dBm to +10dBm |
| Output Power Resolution | 0.1 dB |
| Sweep Mode | Step sweep, List sweep |
| Trigger Mode | Auto, External |
| Internal Modulation Signal Waveform | • Sine wave: 0.1Hz – 500kHz • Square: 0.1Hz – 20kHz • Triangle/ Sawtooth: 0.1Hz – 100kHz |
| Analog Modulation | AM/FM/ФM: support internal/ external modulation source |
| Digital Modulation | Support internal/ external modulation source |
| Pulse Modulation | • Break-make Ratio: ≥ 70dB • Pulse Period: 200ns – 160s • Pulse Width: 100ns – 85s |
| Linear Frequency Modulation (LFM) | S1132A: • Scan Range: 20MHz (max.) • Scan Speed: 20ns – 20ms S1132B: |
| Frequency Upper Conversion | • Input IF Frequency Range: 200MHz ± 10MHz • Input IF Power Range: -50dBm to 0dBm |
(Note: see more detail information in the ‘Resource’ – ‘Datasheet’) |
Main Machine
| Module No. | Item | Description |
| S1132A | Multi-standard Signal Generator | 9 kHz to 6 GHz |
| S1132B | Multi-standard Signal Generator | 9 kHz to 6 GHz, built-in IQ modulator |
Options
| Module No. | Item | Description |
| S1132-01 | Internal Baseband Data Generation Option | / |
| S1132-02 | RF Upper Conversion Device | / |
| S1132-03 | Analog External Audio Modulation | / |
| S1132-04 | Single sideband modulation / Double sideband modulation | / |
| S1132-05 | High Stability Time Base Option | / |
| S1132-06 | Power Meter Control Kit | / |
| S1132-07 | Omnidirectional Antenna | Frequency range 300MHz - 6GHz |
| S1132-08 | Directional Antenna | Frequency range 600MHz - 8GHz |
