El analizador de comunicaciones de campo de la serie S5800H es un instrumento de pantalla táctil grande de 8.4 pulgadas que está diseñado específicamente para ingenieros y técnicos de campo de comunicaciones inalámbricas. La serie S5800H proporciona todas las funciones de medición necesarias y el rendimiento para caracterizar con precisión el entorno de la señal, además de borrar, detectar, identificar y localizar interferencia de señal.

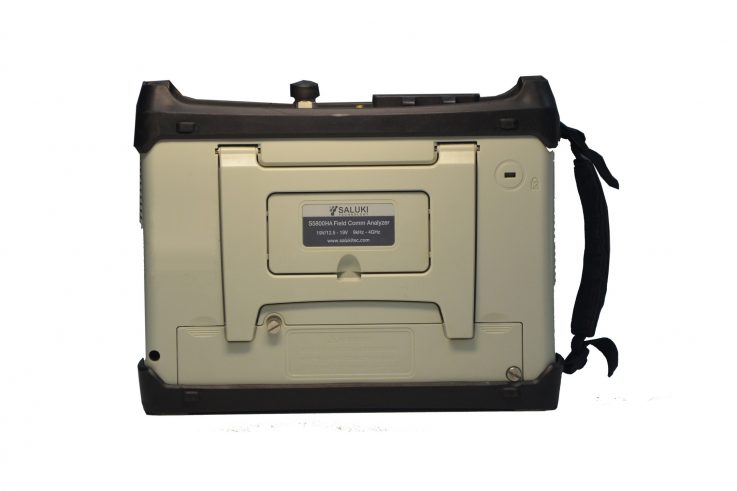

Serie S5800H Analizador de comunicaciones de campo
Características claves
Rango de frecuencia: 9kHz-4.0GHz / 6.0GHz
Modo de escaneo rápido, excelente DANL -164dBm / Hz
Cobertura de señal interior y exterior, prueba de limpieza de red opcional
Medición en el dominio del tiempo, con generador de seguimiento opcional

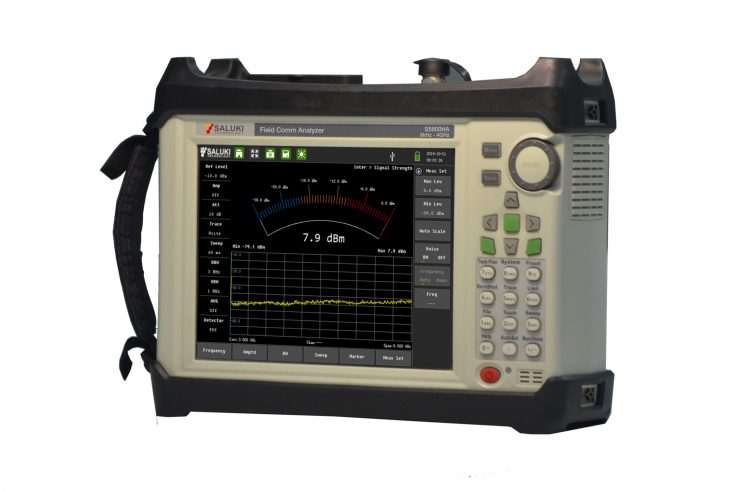

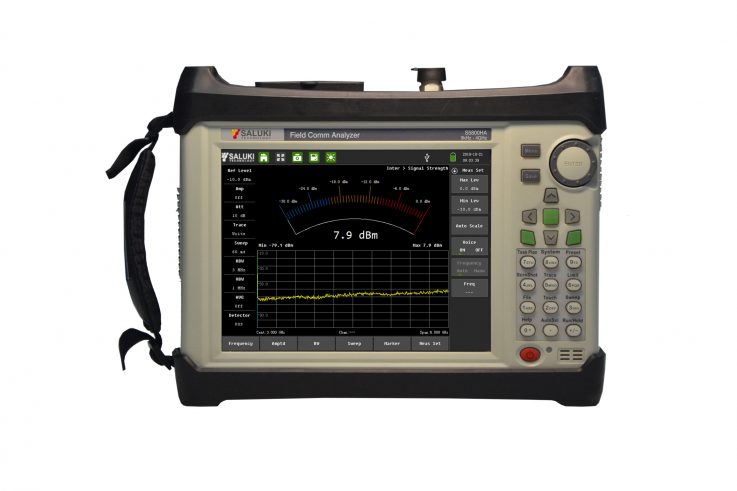

Pantalla táctil TFT / LCD de 8.4 pulgadas, portátil, diseño liviano y resistente
Medición de potencia en un solo click: potencia del canal, ancho de banda ocupado, ACPR, intensidad de campo
Analizadores de señal 3GPP, TDD-LTE, FDD-LTE, WCDMA/HSDPA+, TD-SCDMA/ HSDPA+, CDMA/EVDO, GSM/EDGE
Potente análisis de interferencia: espectrograma, intensidad de la señal, indicación de la intensidad de la señal recibida, escaneo de canales, identificación de la señal, ubicación de la interferencia, espectro de persistencia digital, espectro diferencial
| 1. Spectrum Analysis | |
| Frequency Range | S5800HA: 9 kHz to 4.0 GHz, S5800HB: 9 kHz to 6.0 GHz |
| Frequency Resolution | 1 Hz |
| Frequency Counting Accuracy | (signal to noise ratio is 25dB, the resolution bandwidth / sweep width =0.01) |
| Aging | < ±1×10-6/ year |
| Frequency Span | S5800HA: 1kHz to 4GHz in 1-2-5 sequence (automode), and 0Hz (zero span) S5800HB: 1kHz to 6GHz in 1-2-5 sequence (automode), and 0Hz (zero span) |
| RBW | 1Hz to 3MHz in 1-3 sequence (auto or manually selectable) |
| VBW | 1Hz to 3MHz in 1-3 sequence (auto or manually selectable) |
| Accuracy | < ±10% |
| Phase Noise (typ.) | • -90dBc/Hz @ 1kHz offset • -100dBc/Hz @ 10kHz offset • -110dBc/Hz @ 100kHz offset |
| Amplitude Dynamic Range | > 100dB |
| Max. Safe Input Level | +30dBm (peak power, input attenuation >15dB), 50VDC |
| Amplitude Accuracy | < ±1.0dB |
| TOI (typ.) | > +15dBm |
| Displayed Average Noise Level (Preamplifier On) | S5800HA: • 10MHz – 1GHz: < -165dBm • 1GHz – 3GHz: < -160dBm • 3GHz – 4GHz: < -158dBm S5800HB: • 10MHz – 1GHz: < -162dBm • 1GHz – 3GHz: < -158dBm • 3GHz – 6GHz: < -152dBm (Input terminated, RBW = 1Hz, Attn = 0dBm, Sample detector, Typical) |
| Displayed Average Noise Level (Preamplifier Off) | S5800HA: • 10MHz – 1GHz: < -150dBm • 1GHz – 4GHz: < -142dBm S5800HB: • 10MHz – 1GHz: < -150dBm • 1GHz – 6GHz: < -140dBm (Input terminated, RBW = 1Hz, Attn = 0dBm, Sample detector, Typical) |
| Residual Response | 1MHz – 6GHz: < -85dBm (no signal input attenuation, 0dB) |
| Second Harmonic Distortion | < -70dBc (input level -20dBm, mixer input, preamp off) |
| Reference Level | • Range: -167dBm to +35dBm • Accuracy: < ±0.5dB |
| Sweep Time | • 20ms – 250s (> 200Hz) • 10us – 1000s (= 0Hz) • 1ms -250s (Fast scan) |
| Trigger Mode | Free trigger, Single trigger, Video trigger, Trigger |

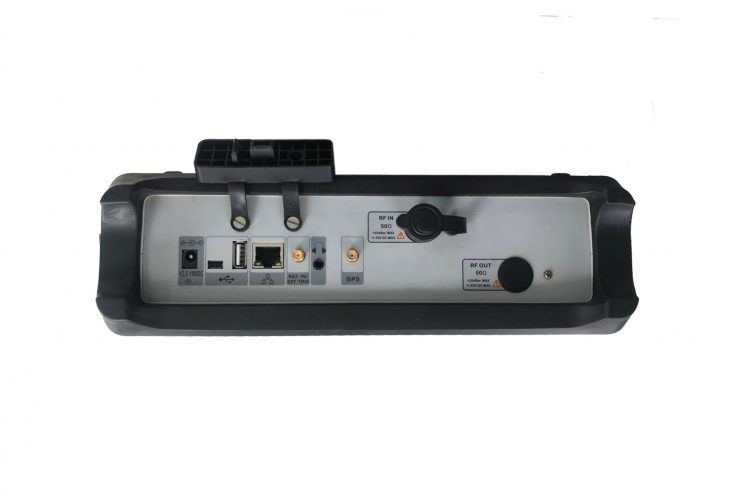

| RF Input Connector | Type-N (50Ω) |
| VSWR (typ.) | < 1.8 (10MHz – 4/ 6GHz, attenuator >10dB) |
| 2. LTE Measurement | |
| Frequency Range | S5800HA: 10 MHz to 4.0 GHz, S5800HB: 10 MHz to 6.0 GHz |
| Bandwidth | 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz |
| EVM Mode | BTS mode (RS/P-SS/S-SS/PDSCH), OTA mode (RS) |
| RF Measurement Accuracy (typ.) | • ±1.0dB (input range -50dBm to +10dBm) LTE-FDD • ±1.0dB (input range -30dBm to +10dBm) LTE-TDD |
| Modulation Measurement | Frequency Deviation: ±10Hz + Reference clock deviation EVM Accuracy (FDD-LTE): 2% (typ. E-UTRA Test Model 3.1, -50dBm to -10dBm) EVM Accuracy (TDD-LTE): 2% (typ. E-UTRA Test Model 3.1, -50dBm to -10dBm) |
| Over-the-Air Measurement | Scanner: • Capture up to 6 signals • SS-POWER, RSRP, RSRQ,SINR • Automatically save with GPS information, SS power and modulation measurement results Antenna Alignment: • Support MIMO 2X2, 4X4 • Display RS power and multiple antenna delay Coverage Map Measurement: • Sweep-S-SS power, RSRP,RSRQ/SINR, Cell ID of the strongest signal • Output format: .kml, .csv |
| 3. WCDMA Measurement | |
| Frequency Range | S5800HA: 10 MHz to 4.0 GHz, S5800HB: 10 MHz to 6.0 GHz |
| Bandwidth | 3.84 MHz |
| Maximum Spreading Factor | 256 / 512 |
| RF Measurement Accuracy (typ.) | ±1.0dB (input range -50dBm to +10dBm) |
| Demodulation Measurement | Frequency Offset: ±10Hz + Reference clock deviation Modulation Type: WCDMA QPSK, HSPA+QPSK, 16QAM, 64QAM EVM Accuracy (RMS): 2% (EVM <25%) CDP: ±1.0dB (CDP > -25dB) CPICH: ±1.0dB
|
| Over-the-Air Measurement | Scrambling Code Scanner: • Up to 6 scrambling codes • CPICH, Ec/Io, Ec, Channel power Multiple Scanner • Up to 6 multipath • Tau, RSCP, Channel power |
| 4. GSM/EDGE Measurement | |
| Frequency Range | S5800HA: 10 MHz to 4.0 GHz, S5800HB: 10 MHz to 6.0 GHz |
| RF Measurement Accuracy (typ.) | ±1.0dB (input range -50dBm to +10dBm) |
| Demodulation Measurement | Frequency Offset: ±10Hz + Reference clock deviation Modulation Type: GSM GMSK, EDGE 8PSK Phase Error (GMSK): ±1.0deg EVM (8PSK): ±1.5% |
| 5. TD-SCDMA Measurement | |
| Frequency Range | S5800HA: 10 MHz to 4.0 GHz, S5800HB: 10 MHz to 6.0 GHz |
| Bandwidth | 1.6 MHz |
| Slot Selection | 256 / 512 |
| SYNC-DL Setting | Auto or 0-31 setting |
| Demodulation Type | Auto or QPSK/8PSK/16QAM/64QAM |
| RF Measurement Accuracy (typ.) | ±1.0dB (input range -50dBm to +10dBm) |
| Demodulation Measurement | Frequency Offset: ±10Hz + Reference clock deviation Demodulation Type: QPSK, 8PSK, 16QAM, 64QAM EVM Accuracy (RMS): 2% (P-CCPCH power > -50dBm) |
| Over-the-Air Measurement | Scrambling Code Scanner: • 32 SYNC-DL • Ec/Io and Tau measurement Tau Scanner: • Up to 6 SYNC-DL • DwPTS power, Tau, Ec/Io measurement |
| Display | 8.4 inch TFT LCD (800*600) |
| Data Storage | Internal: 1GB, >2000 saved measurement files External: Limited by size of USB flash drive |
| Dimension | 278 (H) × 217 (W) × 87 (D)mm |
| Weight | 3kg |
| Battery | Li-ion, 11.1V, 5200mAh |
| Operation Time | >4 hrs, continuous; 8 hrs, idle |
Main Machine
| Module No. | Item | Description |
| S5800HA | Field Comm Analzyer | 9 kHz to 4.0 GHz |
| S5800HB | Field Comm Analzyer | 9 kHz to 6.0 GHz |
Options
| Module No. | Item | Description |
| S5800-01 | RF Power Meter (Software) | Providing true RMS measurements with accurate measurements for both CW and complex digitally modulated signals. |
| S5800-02 | In-line Bi-Directional RF High Power Sensor | 300MHz to 4GHz, 2mW to 150W, N(f), 50Ω |
| S5800-03 | Terminal RF Power Sensor | 1MHz to 6GHz, -30dBm to +20dBm, N(m), 50Ω |
| S5800-04 | Interference Locatiton Analysis | Add Spectrogram, RSSI, Signal ID, Signal Strength, Interference Location Mapping, Delta Spectrum and DPS measurement applications to the spectrum analyzer. (Need directional log periodic antenna, option 13-17) |
| S5800-05 | Signal Coverage Mapping | Allowing users to map RSSI and ACPR measurements. (Need option S5800-06) |
| S5800-06 | GPS Module (USB) | / |
| S5800-07 | Signal Analysis | LTE, WCDMA, TDSCDMA, GSM, CDMA |
| S5800-08 | Tracking Generator | Frequency range: 25MHz - 4.4GHz |
| S5800-09 | Tracking Generator | Frequency range: 25MHz - 6.0GHz |
| S5800-10 | Spectrum Persistence | Find interference covered by transmit signal. Acquires several thousands of spectrum data per second and show the spectrum density over time. |
| S5800-11 | Gate Sweep | For TD signal analysis |
| S5800-12 | Directional Active Log Periodic Antenna | Frequency range: 9kHz to 20MHz |
| S5800-13 | Directional Active Log Periodic Antenna | Frequency range: 20MHz to 200MHz |
| S5800-14 | Directional Active Log Periodic Antenna | Frequency range: 200MHz to 500MHz |
| S5800-15 | Directional Active Log Periodic Antenna | Frequency range: 500MHz to 3GHz |
| S5800-16 | Directional Active Log Periodic Antenna | Frequency range: 500MHz to 8GHz |
| S5800-17 | Antenna Handle with GPS and Electronics Compass | / |
