Type N High Performance VNA Test Cable Assemblies

Saluki SCAVNA series High Performance VNA Test Cable Assemblies are specifically engineered to provide the most precise VNA measurements in laboratory conditions. The SCAVNA series with excellent phase and amplitude stability can achieve high reliable test results with bend, crush and many other testing situations.

Saluki’s cable assemblies maintain excellent insertion loss and VSWR. Our assemblies ensure accurate and repeatable measurements because of their phase and amplitude stability guaranteed with flexure-tested for over 100,000 flex cycles and over 5,000 mating cycles.

Key Features

NMD-style ruggedized connectors

Crush resistance greater than 130kgf/cm

Over 100,000 flexures at minimum bend radius

Torque resistance

Virtually zero cable spring back

  • Typical VSWR, Insertion Loss, Phase Stability Performance

    *Under condition: Data tested from 1.85mm SCAVNA test cable, at bent 360° with 10cm diameter.

  • General Information

Saluki P/N

SCAVNA18MM-(N/N)

SCAVNA18MF-(N/N)

SCAVNA18MM-(N/3.5)

SCAVNA18MF-(N/3.5)

Frequency Range

DC – 18GHz

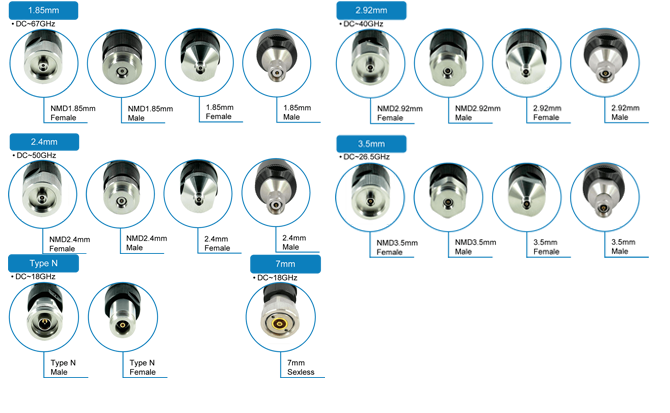

VNA End

Type N Male

DUT End

SCAVNA18MM-(N/N):N Male

SCAVNA18MF-(N/N):N Female

SCAVNA18MM-(N/3.5):NMD 3.5mm Male

SCAVNA18MF-(N/3.5):3.5mm Female

VSWR

1.2

Insertion Loss

< 1.5dB

Phase Stability

< ±1.5°

Amplitude Stability

< ±0.05dB

Shielding Effectivity

> 100dB

Cruch Resistance

> 130kgf/cm

Length

63cm (24.8 inch)

Impedance

50Ω

Connector Materials

Body:Stainless steel, Passivated

Center Conductor:Au-plated beryllium Copper



Cable Descriptions

Center Conductor:Au-plated copper

Dielectric:PTFE

Outer Conductor:Ag-plated copper tape

Inner Braid:Ag-plated copper braid

Outer Jacket:Multilayer armour

Outer Diameter:15.2mm

Minimum Bend Radius:50mm

Environmental Condition

Operating Temperature:0°C to +40°C

Storage Temperature:-40°C to +75°C
