SK500X Handheld Smart Light Source is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with handheld optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers. The smart light source provides 1 to 4 wavelengths and output power can be adjustable on customer requests. Also the light source features good appearance, good touch feeling and considerate humanity design.

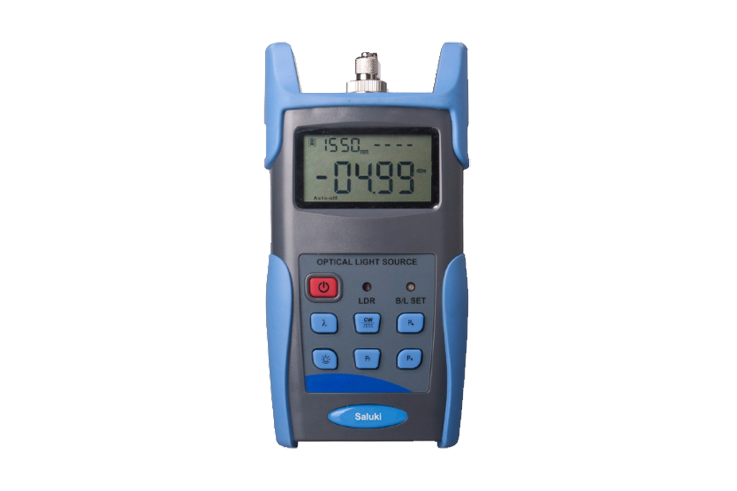

SK500X Smart Laser Source
Key Features
Standard Wavelength 1310/1550nm, support customized wavelength, up to 4 wavelength
Support CW and a variety of modulation light output
-5dBm to +12 dBm adjustable output power
Wave ID information can be transmitted when used with Optical Power Meter
AA alkaline and AC adapter for power supply
Intelligent backlight control
Low battery indication
| Wavelength | 1310/1550 nm |
| Fiber Type | SM |
| Optical Connector | FC/PC |
| Laser Type | FP-LD |
| Output Power | -5dBm to 12dBm (can be adjustable) |
| Adjustable Step Size | < 0.5dBm |
| Stability | 0.15dB / 30min (20℃) |
| Modulation Mode | CW/270Hz/330Hz/1kHz/2kHz |
| Continuous Working Time | ≥ 45h |
| Power Supply | Three AA batteries, 1.5V |
| Dimension | 90 (W) × 180 (H) × 45 (D) mm |
| Weight | 250g |
Main Machine
| Module No. | Item | Description |
| SK500X | Smart Laser Source | 1310/1550 nm, SM, Dry battery |
