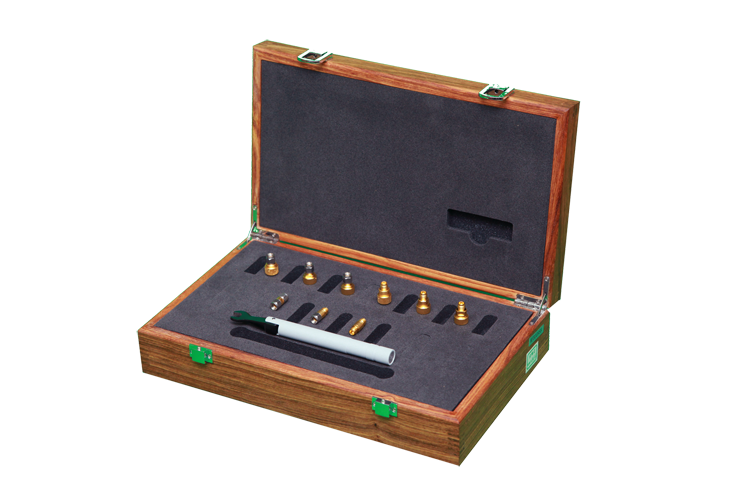

SCKCL09-N Mechanical Calibration Kit

SCKCL09-N mechanical calibration kit contains precision standard devices to calibrate network analyzers in the N-type interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.



Click here to purchase online !

Key Features

DC to 9GHz frequency coverage

Adapters and torque wrench included

Using for Site Master, Cable & Antenna Analyzer and VNA calibration

Saluki, Agilent/Keysight, Anritsu, Rohde & Schwarz, Tektronix and other VNA supported

  • How to Place an Order ?

    By Paypal

     Click here to purchase online !

    •  Ship by DHL/FEDEX/UPS express



    T/T Bank

    •  Need a PI for payment? Please send email to sales@salukitec.com

  • Common Q&A

    Q: Can I use it in Keysight VNA?

    A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.

    Q: Can I use it to R&S, Anritsu or other brand VNA?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

    Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

    Q: What is the warranty time?

    A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.

    Q: Who will afford shipping cost for return?

    A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

Frequency

DC to 9 GHz

Specifications

•  Open: ± 1.2°

•  Short: ± 1.0°

•  Load: VSWR < 1.029

•  Adaptor: VSWR < 1.052

Impedance

50 ohm

Standard Package

No. Item Qty.
1 Open: N (M) 1
2 Open: N (F) 1
3 Short: N (M) 1
4 Short: N (F) 1
5 Load: N (M) 1
6 Load: N (F) 1
7 N(f) – N(f) adaptor 1
8 N(m) – N(m) adaptor 1
9 N(m) – N(f) adaptor 1
10 Torque wrench 1
Video
  • Unboxing Video
