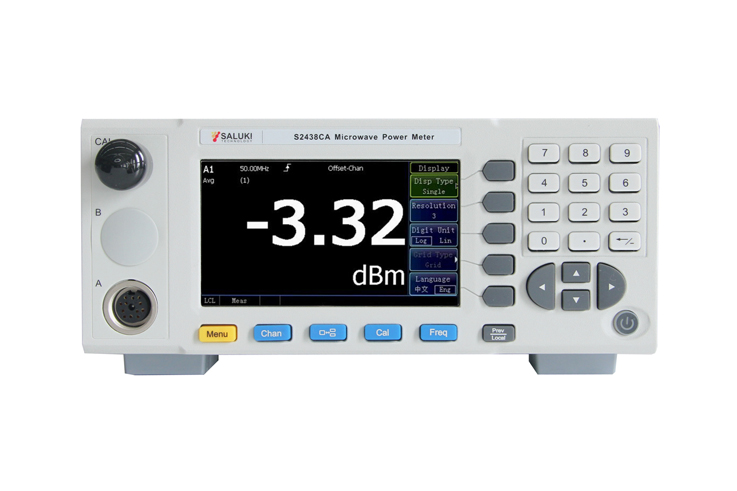

S2438 series microwave power meter is composed of a host of microwave power meter and a series of microwave power sensors. S2438 series have a wide frequency band, large dynamic power range, high precision, fast measurement and analysis, serialization of sensors. It is mainly used for measuring and calibrating the average power, peak power and pulse envelope power of microwave signals. S2438 series is an important measurement instrument for the research, production, acceptance and maintenance of radar, electronic countermeasures, and communications.
S2438 series is a good suitable of Keysight N1911A/ N1912A/ N1913A/ N1914A.
Key Features
Wide frequency range, up to 500GHz
A variety of sensor options: CW power sensor frequency up to 500GHz with the max. dynamic range 90dB, Peak power sensor frequency up to 67GHz with the max. dynamic range 60dB
More than 10 kinds of measurement and analysis functions of amplitude and time domain parameters for microwave / millimeter-wave pulse modulation signals
Flexible and open frequency offset list setting, with high-power attenuator or high-power directional coupler to achieve accurate measurement of signal power
Multiple measurement modes: CW measurement, peak measurement, CCDF statistic measurement
Peak power sensors use internal calibration

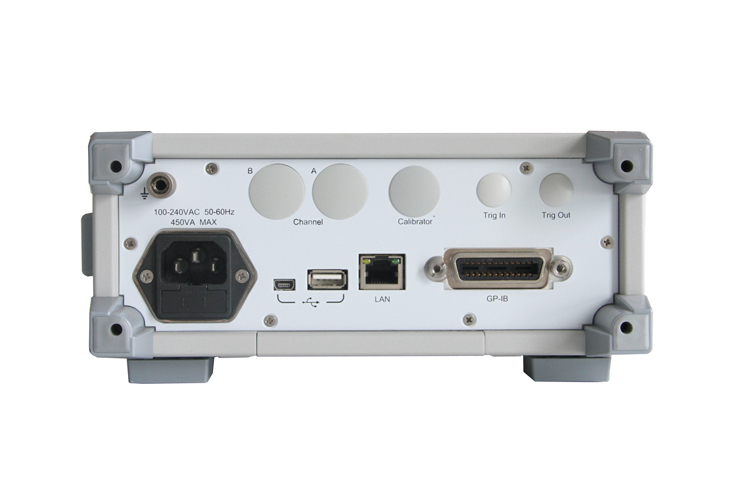

GPIB, LAN, USB programmable control function
Save and recall configuration information
