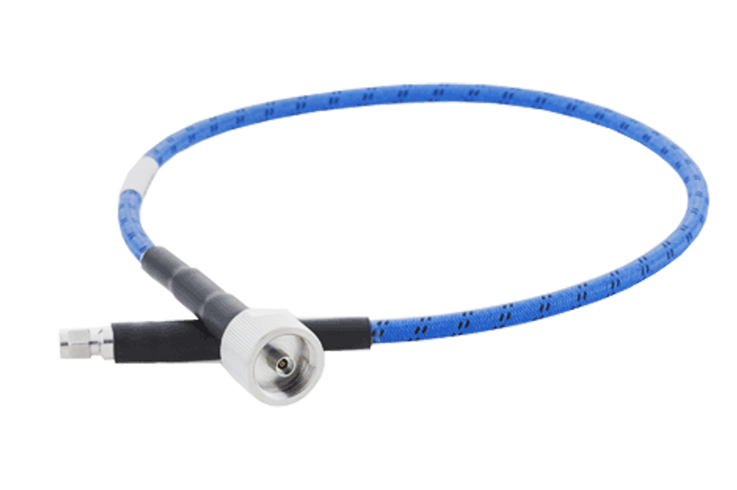

NMD 3.5mm Economic VNA Test Cable Assemblies

Saluki ECAVNA series Economic VNA Test Cable Assemblies possess good microwave eletrical performance and phase and amplitude stability. The flexible and lighter structure makes the testing more efficient. The patented design provides stable performace in laboratory and production applications.

Saluki’s cable assemblies maintain excellent insertion loss and VSWR. Our assemblies ensure accurate and repeatable measurements because of their phase and amplitude stability guaranteed with flexure-tested for over 100,000 flex cycles and over 5,000 mating cycles.

Key Features

NMD-style ruggedized connectors

Crush resistance greater than 80kgf/cm

Over 100,000 flexures at minimum bend radius

Torque resistance

Virtually zero cable spring back

Frequency Range

DC – 18GHz

VNA End

Type N Female

DUT End

ECAVNA18FM-(N/N):N Male

ECAVNA18FF-(N/N):N Female

VSWR

1.2

Insertion Loss

< 0.9dB

Phase Stability

< ±3.5°

Amplitude Stability

< ±0.1dB

Shielding Effectivity

> 100dB

Cruch Resistance

> 80kgf/cm

Length

63cm (24.8 inch)

Impedance

50Ω

Saluki P/N

ECAVNA26FM-(3.5/3.5)
ECAVNA26FF-(3.5/3.5)
