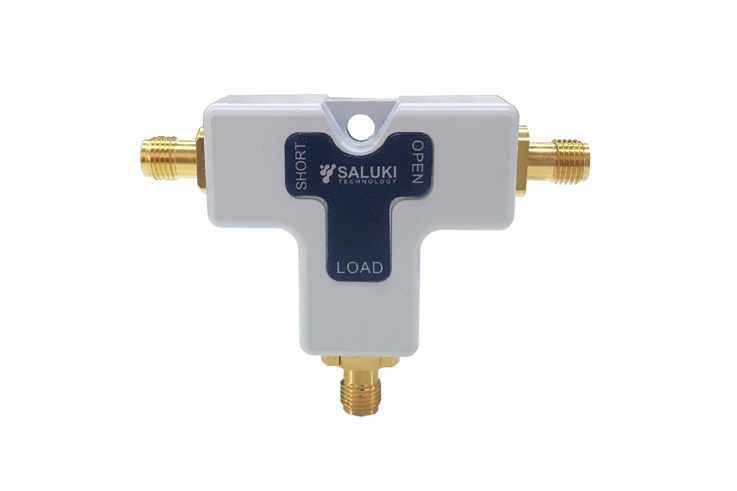

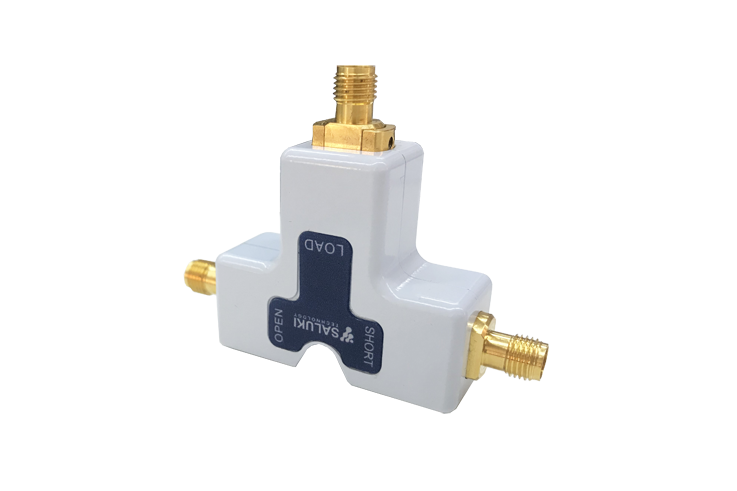

Mechanical Calibration Kit, 26.5GHz, 3.5mm, OSL

SCK0TTL26-3.5 series is a 3 in 1 mechanical cal kit, which used to calibrate network analyzers for measurements of components with 3.5mm connectors.

Saluki’s VNA calibration kits and open short load circuits offer test equipment coverage for the most popular network analyzer models with 3.5mm/SMA series test port including Agilent® / Keysight®, Anritsu®, Rohde & Schwarz®, Tektronix® and other VNA network analyzers.

Key Features

DC to 26.5GHz frequency coverage

3.5mm male or female connector configuration

50 ohm impedance

Application

Site Master

Cable and Antenna Analyzer

Vector Network Analyzer (VNA)

Unit Price: $924 (1-5pcs)

Within 24h Delivery !

Download
SCK0TTL26-3.5 Datasheet

Select Module

SCK0TTL26-3.5 Calibration Kit :
Add to Cart

Detailed

Technical Specifications

Model Name Frequency Specifications List
SCK0TTL26-3.5(M) 3.5mm calibration kit

T Type

DC – 26.5 GHz Open: ± 2.0°
Short: ± 2.0°
Load: VSWR < 1.065
3.5mm (Male) T type calibration kit
SCK0TTL26-3.5(F) 3.5mm (Female) T type calibration kit

Unboxing Video

How to Place an Order ?

Common Q&A

  • Q: Can I use it in Keysight VNA?

    A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.

  • Q: Can I use it to R&S, Anritsu or other brand VNA?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

  • Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

  • Q: What is the warranty time?

    A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.

  • Q: Who will afford shipping cost for return?

    A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.
