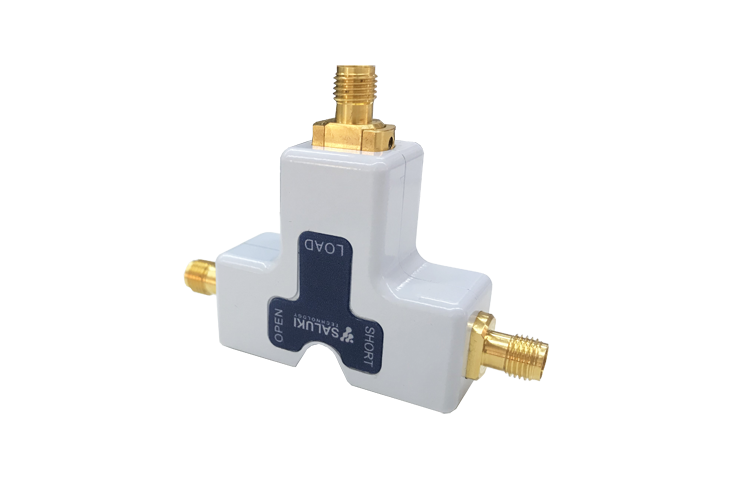

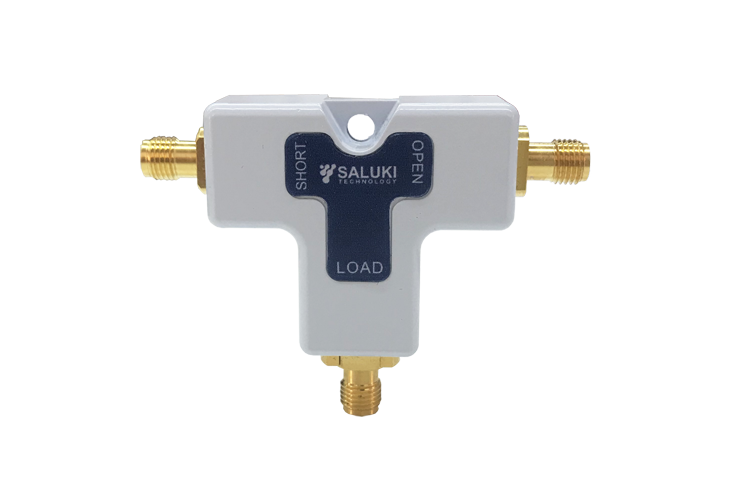

SCK0TTL40-2.92 Mechanical Calibration Kit

SCK0TTL40-2.92 series mechanical calibration kit has been designed to provide superior measurement results when used with precision instruments. It is designed for use in both field and lab environments. It is a high precision component and should be handled with proper care. Excessive shock, torque, or power should be avoided to prevent permanent damage.



Click here to purchase online !

Key Features

0.1 to 40GHz frequency coverage

2.92mm(M) and 2.92mm(F) connector configuration

Using for Site Master, Cable & Antenna Analyzer and VNA calibration

Saluki, Agilent/Keysight, Anritsu, Rohde & Schwarz, Tektronix and other VNA supported

  • How to Place an Order ?

    By Paypal

     Click here to purchase online !

    •  Ship by DHL/FEDEX/UPS express



    T/T Bank

    •  Need a PI for payment? Please send email to sales@salukitec.com

  • Common Q&A

    Q: Can I use it in Keysight VNA?

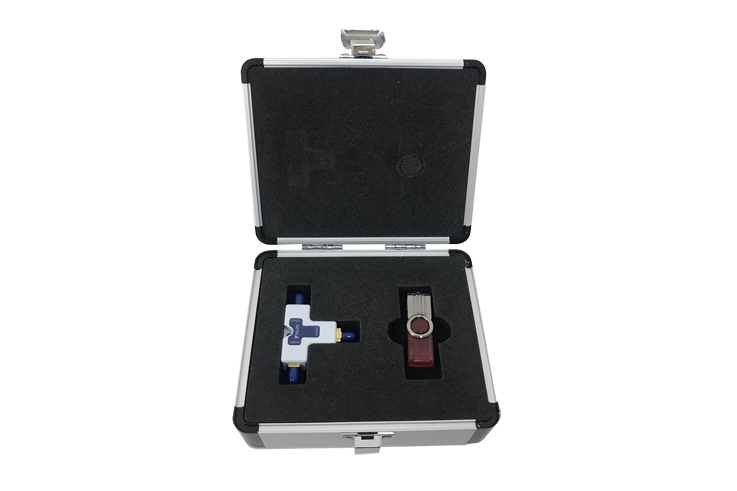

    A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.

    Q: Can I use it to R&S, Anritsu or other brand VNA?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

    Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

    Q: What is the warranty time?

    A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.

    Q: Who will afford shipping cost for return?

    A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

Frequency

100 MHz to 40 GHz

Specifications

•  Open: ± 6°

•  Short: ± 4.5°

•  Load: VSWR < 1.17

Impedance

50 ohm

Main Module

Module No. Item Description
SCK0TTL40-2.92(M) Mechanical Calibration Kit 2.92mm (male) T type calibration kit, 0.1 - 40GHz, Open-short-load
SCK0TTL40-2.92(F) Mechanical Calibration Kit 2.92mm (female) T type calibration kit, 0.1 - 40GHz, Open-short-load
