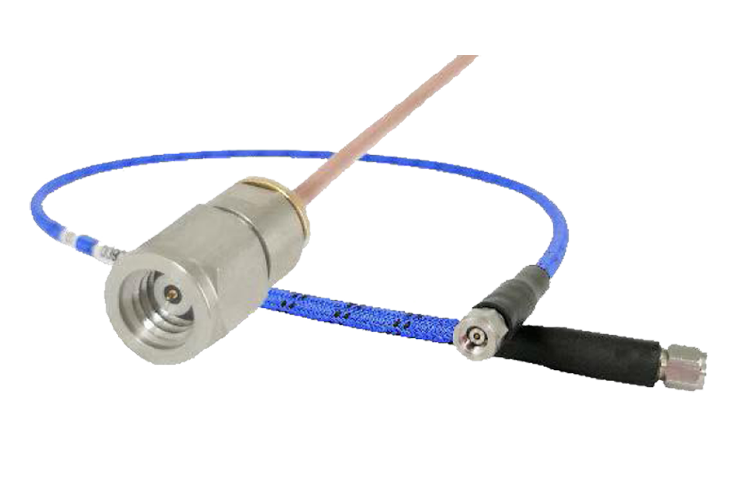

Saluki 1mm Test Cable Assemblies have excellent phase and amplitude stability. It is desiged for the precision testing needs to use a 1.0mm connector interface. It can be used for 110GHz high frequency signal transmission between systems or instruments where low loss and stability are critical.

Key Features

Frequency range DC - 110GHz

50 ohm impedance, max.VSWR 1.45:1

Semi-rigid and armored flexible cable type

Precision 1.0mm stainless steel connectors

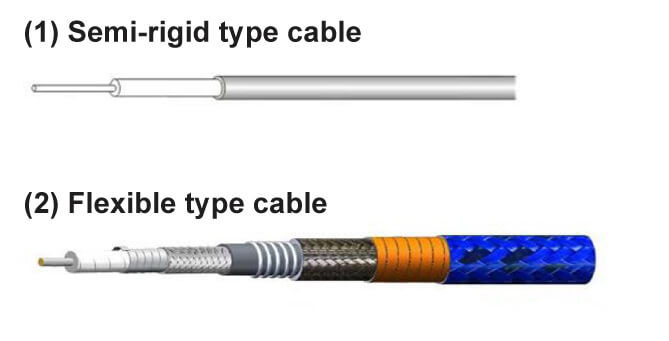

  • Cable Types

    Types Modules Cable Diameter Dynamic Bending
    Radius (Min.)
    Static Bending
    Radius (Min.)
    Semi-rigid C1 1.2mm / 4.2mm
    Armoured flexible H5RU 4.5mm 17mm /
  • C1 Semi-rigid Cable Assemblies: 1.0mm(M) - 1.0mm(M)

    A Length E 6
    B 6.9 F 11.8
    C 6.9 G 11.8
    D 6 H 1.2

    Unit:mm

  • H5RU Flexible Cable Assemblies (with multilayer armour): 1.0mm(M) - 1.0mm(M)

    A Length E 6
    B 7 F 45
    C 7 G 45
    D 6 H 4.5

    Unit:mm

C1 Semi-rigid Cable Assemblies: 1.0mm(M) - 1.0mm(M)
P/N Length (mm) Frequency (GHz) VSWR IL (dB)
SSR1818A-C1S50 50 DC – 110 1.45 2
SSR1818A-C1S100 100 DC – 110 1.45 2.74
SSR1818A-C1S150 150 DC – 110 1.45 3.48
SSR1818A-C1S200 200 DC – 110 1.45 4.22
SSR1818A-C1S250 250 DC – 110 1.45 4.96
SSR1818A-C1S300 300 DC – 110 1.45 5.7
SSR1818A-C1S400 400 DC – 110 1.45 7.18
SSR1818A-C1S500 500 DC – 110 1.45 8.66
H5RU Flexible Cable Assemblies (with multilayer armour): 1.0mm(M) - 1.0mm(M)
P/N Length (mm) Frequency (GHz) VSWR IL (dB)
SAF1818A-H5RU200 200 DC – 110 1.45 3.89
SAF1818A-H5RU300 300 DC – 110 1.45 5.2
SAF1818A-H5RU400 400 DC – 110 1.45 6.52
SAF1818A-H5RU500 500 DC – 110 1.45 7.83
SAF1818A-H5RU800 800 DC – 110 1.45 11.77

C1 Semi-rigid Cable Assemblies: 1.0mm(M) - 1.0mm(M)

P/N Length (mm) Frequency (GHz)
SSR1818A-C1S50 50 DC - 110
SSR1818A-C1S100 100 DC - 110
SSR1818A-C1S150 150 DC - 110
SSR1818A-C1S200 200 DC - 110
SSR1818A-C1S250 250 DC - 110
SSR1818A-C1S300 300 DC - 110
SSR1818A-C1S400 400 DC - 110
SSR1818A-C1S500 500 DC - 110

H5RU Flexible Cable Assemblies (with multilayer armour): 1.0mm(M) - 1.0mm(M)

P/N Length (mm) Frequency (GHz)
SAF1818A-H5RU200 200 DC - 110
SAF1818A-H5RU300 300 DC - 110
SAF1818A-H5RU400 400 DC - 110
SAF1818A-H5RU500 500 DC - 110
SAF1818A-H5RU800 800 DC - 110
